RECLAR
Revolutionizing Wastewater Treatment: Ultra-Fast, Modular, and AI-Powered.
The Future of Wastewater
Treatment is Modular
Strategic Solutions for Every Scale
RECLAR
Modular wastewater treatment features designed for standard industrial applications and rapid deployment.
ISO-Standard Containers
Precision-fabricated 20 & 40ft containers, fully pre-wired and factory acceptance tested for plug-and-play deployment on arrival.
3–6 months
Fast deployment
Worldwide Deployment
Global Logistical Speed
Plug-and-Play
Commissioning completed in just weeks
All-in-One Modular Engineering
Biological stages, membrane filtration, and sludge handling packed into space-saving units
RECLAR Plus

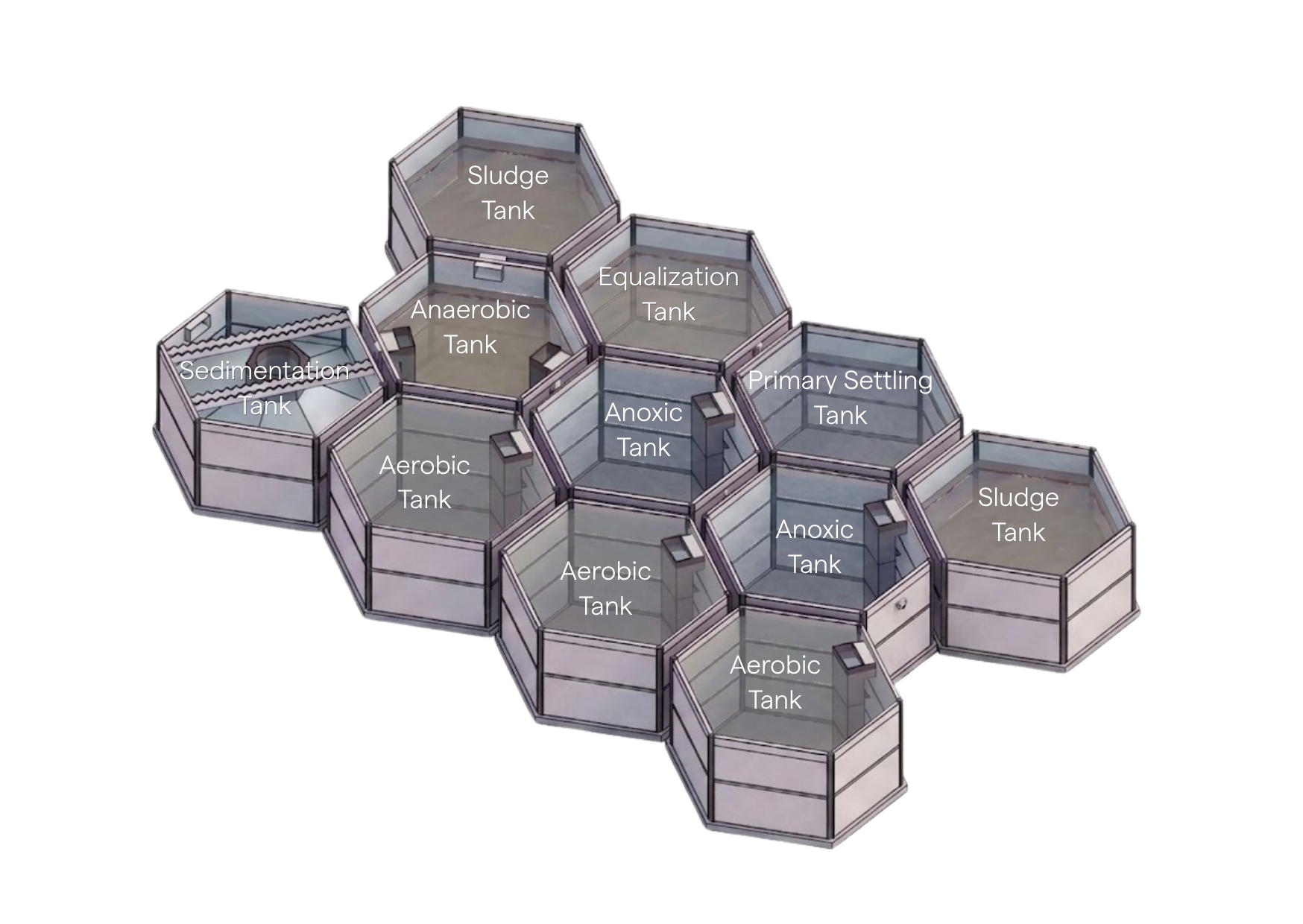

A biomimetic "beehive" structure maximizes volume while reducing material and land use.
Honeycomb water plant
Includes integrated modules for pre-treatment, sludge thickening, peel filtrate collection, aeration (blowers), and reuse
15-35 days
Fast deployment
Sludge processing
Biological phosphorus
Hard anti-corrosion
Q355NH high-quality weathering steel
Intelligent biochemical control
Integrating IoT and advanced algorithms, this platform fully automates system operations to deliver low-carbon, high-efficiency water treatment
RECLAR Pro
An integrated architectural structure for advanced biochemical treatment and complete facilities.
Water treatment complex
This highly compact 92.0 × 94.6 × 9.7m layout houses four massive Φ26m biochemical tanks, utilizing Aerobic Granular Sludge, magnetic flocculation, and UV disinfection to achieve a minimal footprint of only 0.20 ㎡/m³
60-90 days
Fast deployment
Lower carbon
Reduce electricity costs
Infrastructure-grade performance
Replacing heavy civil works with an advanced plug-and-play design
Full End-to-End Control
By automating detection, dosing, and cleaning via IoT and smart algorithms, the system achieves true unmanned supervision and seamless end-to-end operation
Industry-Leading Core Technologies
Denitrification and Phosphorus Removal Technology
Achieve superior nutrient removal with an optimized flow and dual sludge-return system that maximizes internal carbon use for denitrification.
Aerobic Granular Sludge Technology
A globally leading biological process that slashes hydraulic retention time (HRT) by 57% and land footprints by up to 70%, forming dense sludge with an SVI of just 35-45 mL/g.
Honeycomb Modularization
Overcome traditional complexities with a space-efficient "Honeycomb" design that maximizes capacity, reduces materials, and shortens construction cycles.
Sludge Smart-Particle System
Intelligent side-stream sorting returns high-activity sludge to the bioreactor, enabling a 30%-50% capacity expansion without halting production.
Aeration-Sedimentation Tank
Avoid costly shutdowns by combining biochemical treatment and clarification into one upflow bioreactor, achieving stable separation and high-rate (1.5–2.5 m³/m²·h) crystal-clear effluent.
Biochemical Control System
Integrating IoT and smart algorithms, this platform fully automates dosing, detection, and cleaning across 30+ large-scale projects to slash energy use and maximize efficiency.
Real-World Validation

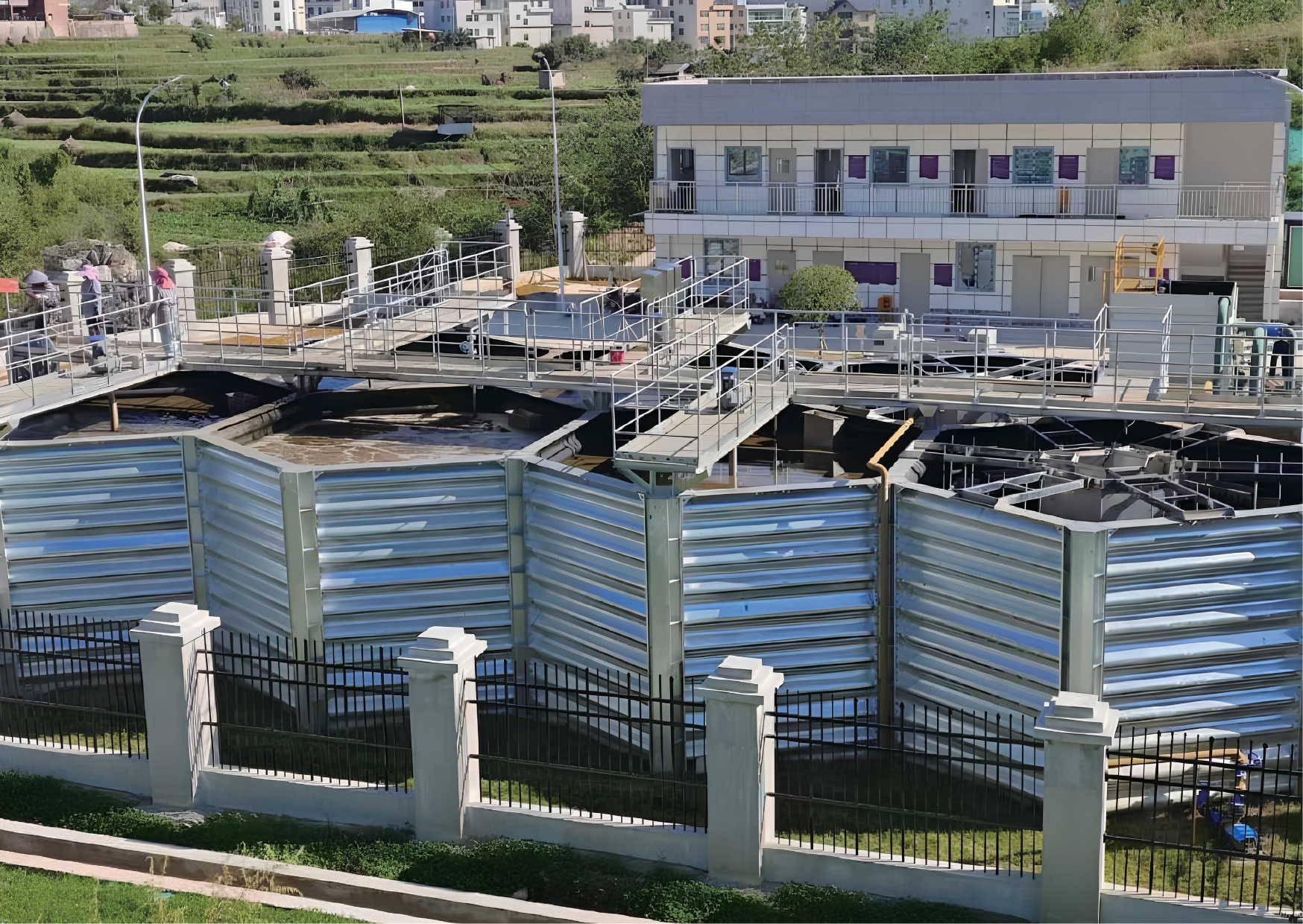

1,200 m³/d, Duyun
Addressing the challenge of treating fluctuating municipal and industrial wastewater under poor site conditions and a strict schedule, the installation of a modular "Honeycomb" system with advanced biological treatment was fully completed within a rapid 45-day construction period, delivering a land-compact, impact-resistant, and flexibly expandable facility.
